EZ-TagBuddy

Bad Tag Screening Near Field Tester

    Ø Specialized equipment for tag production test automation.

    Ø Customized near-field antenna, reading distance less than 2cm, can effectively screen bad tag in the tag rolls.

    Ø Support EPC C1Gen2 V2.0, EPC C1Gen2 V1.2 and ISO18000-6C.

    Ø OLED display, you can choose to read EPC or TID, there is a buzzer tone, convenient and quick to view the label information.

    Ø Battery capacity 800mAh, charging interface USB TYPE C.

    Ø Intelligent power saving mode, no operation 60 seconds automatic shutdown, can work continuously for more than 6 hours.

    Ø Data can be exported to PC via USB (drive-free), Bluetooth, 2.4G communication.

          Ø Compact, portable and easy to operate.


Download Annex

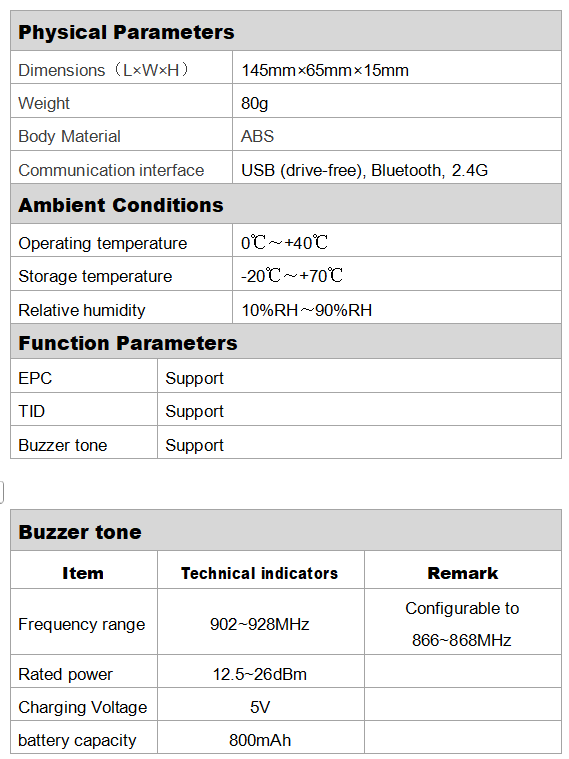

  • Parameters

    Ø Specialized equipment for tag production test automation.

    Ø Customized near-field antenna, reading distance less than 2cm, can effectively screen bad tag in the tag rolls.

    Ø Support EPC C1Gen2 V2.0, EPC C1Gen2 V1.2 and ISO18000-6C.

    Ø OLED display, you can choose to read EPC or TID, there is a buzzer tone, convenient and quick to view the label information.

    Ø Battery capacity 800mAh, charging interface USB TYPE C.

    Ø Intelligent power saving mode, no operation 60 seconds automatic shutdown, can work continuously for more than 6 hours.

    Ø Data can be exported to PC via USB (drive-free), Bluetooth, 2.4G communication.

          Ø Compact, portable and easy to operate.

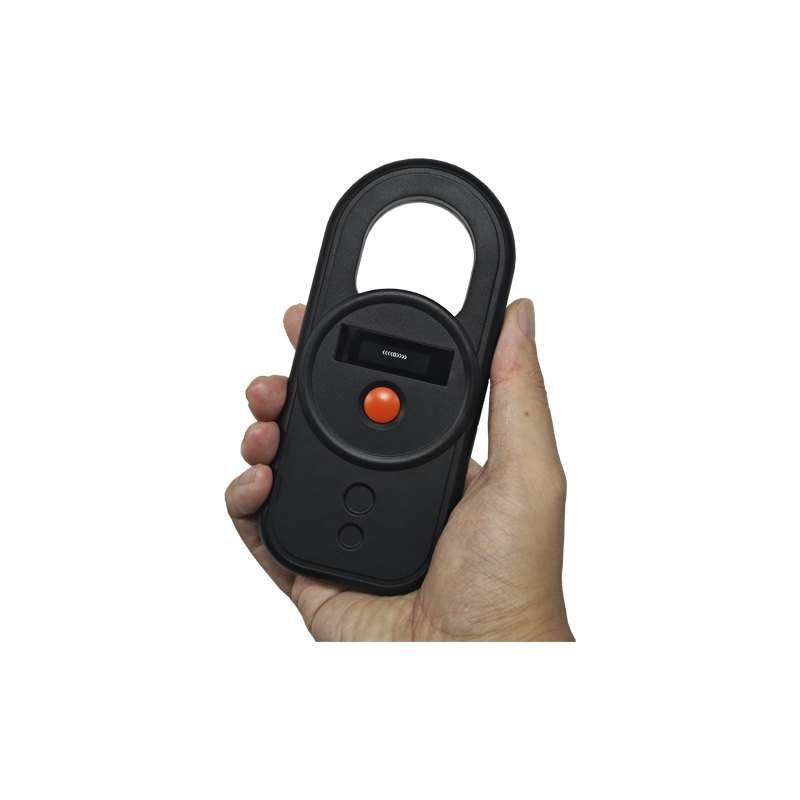

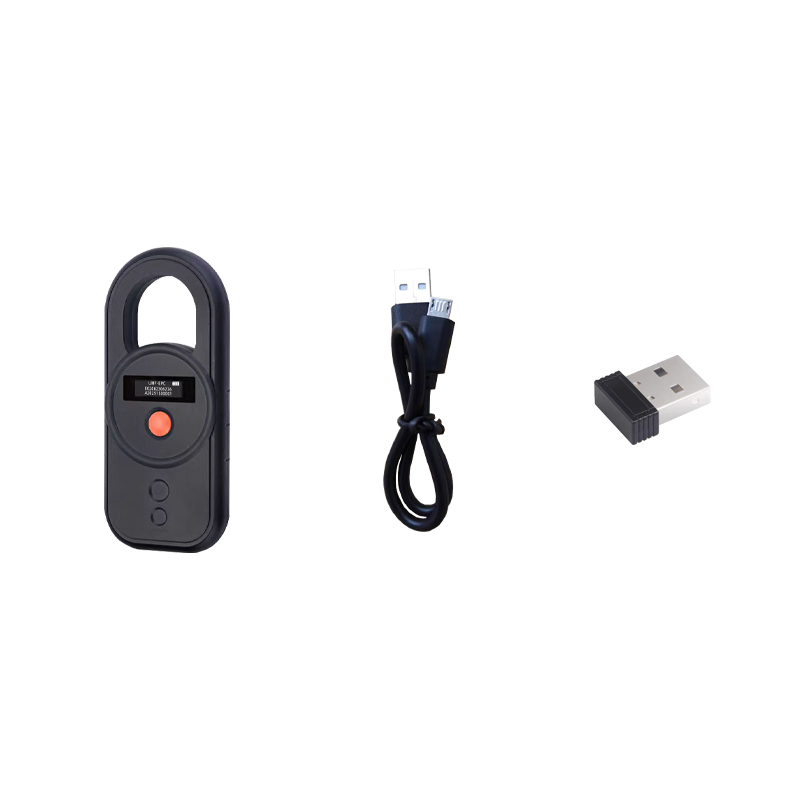

EZ-TagBuddy
Bad Tag Screening Near Field Tester
