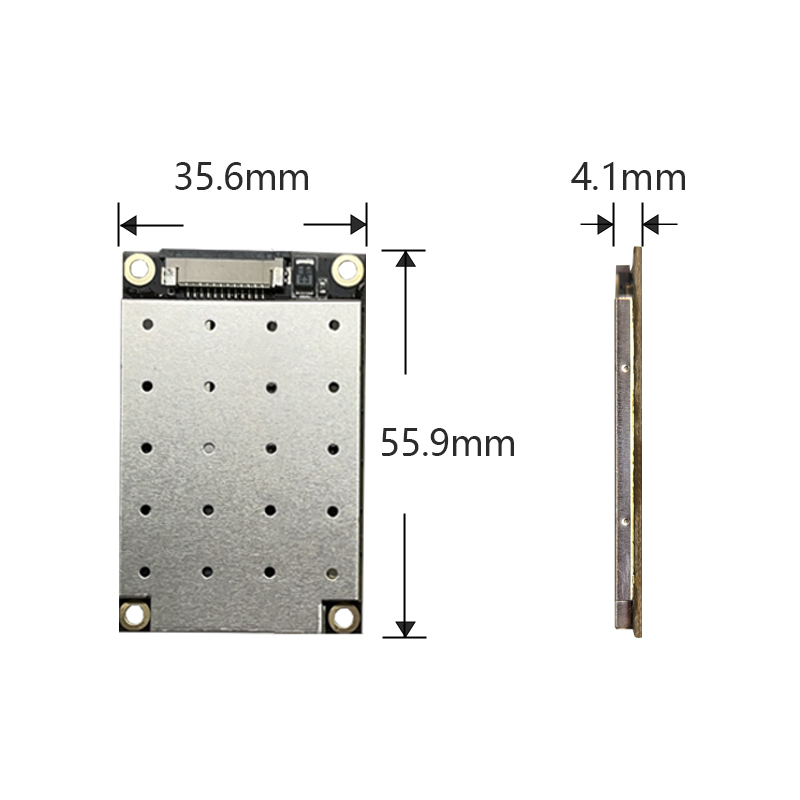

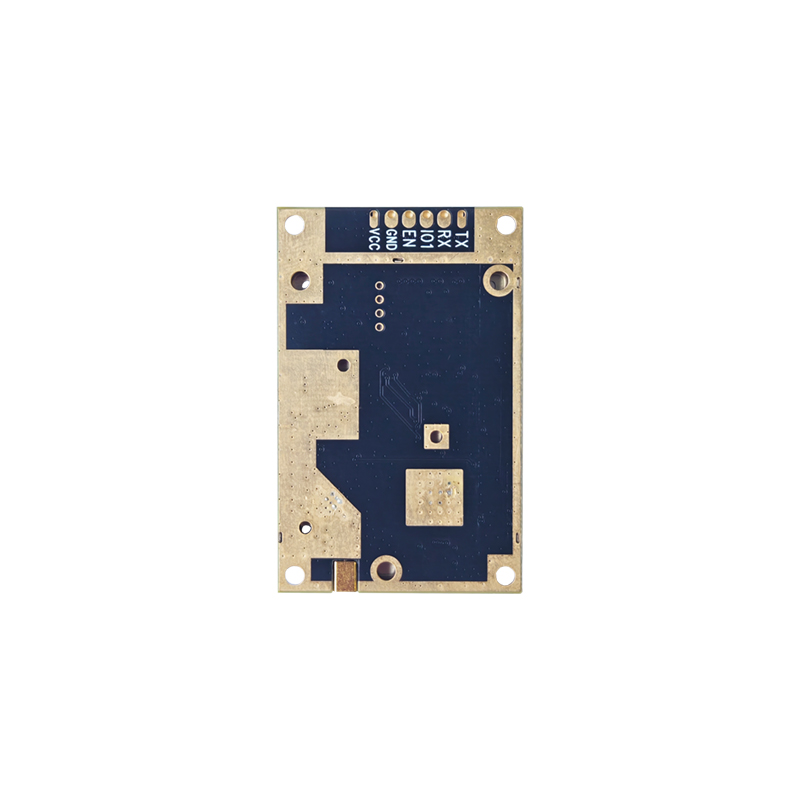

EZ1316M-1

1 Port UHF RFID Reader Module

Ø Based on FM13RD1616EL chip platform;

Ø Support EPC C1Gen2 V2.0 ,EPC C1Gen2 V1.2, ISO18000-6B,ISO18000-6C and GB 29768;

Ø The low power consumption mode of the handheld PDA application scenario, the average power consumption is reduced by 50% compared with the ordinary mode;

Ø Support temperature protection, if the temperature exceeds (85℃), it will automatically stop working, if the temperature is lower than (85℃), the device will automatically resume work;

Ø 7*24 hours continuous trouble-free work;

Ø Support FastID、Tagfocus、QT、QTWrite、QTRead、BlockWrite、BlockErase、BlockPermalock etc;

Ø Ultra-fast label writing mode, 12-byte EPC can be written within 50ms;

Ø Support tag RSSI detection, tag phase detection;

Ø Supports reading of UHF RFID special  tags such as temperature tags, humidity tags, light-up tags, etc.

Ø Suitable for mobile RFID readers, fixed RFID readers, card issuers, integrated RFID readers, label printers, etc.
