Refined management of smart trash cans based on RFID technology

1、Analysis of garbage station management issues

• The number and distribution of facilities is unclear;

• The frequency of garbage collection is not enough and the garbage cleaning is not thorough;

• Issues such as staff not following prescribed routes for collection and cleaning, illegal operations, etc.

• Garbage transfer is not timely and vehicle scheduling is unreasonable;

• Workers are absent from work;

• Poor management of toxic and hazardous waste.


2、IoT solutions based on RFID technology

3、IoT solutions based on RFID technology

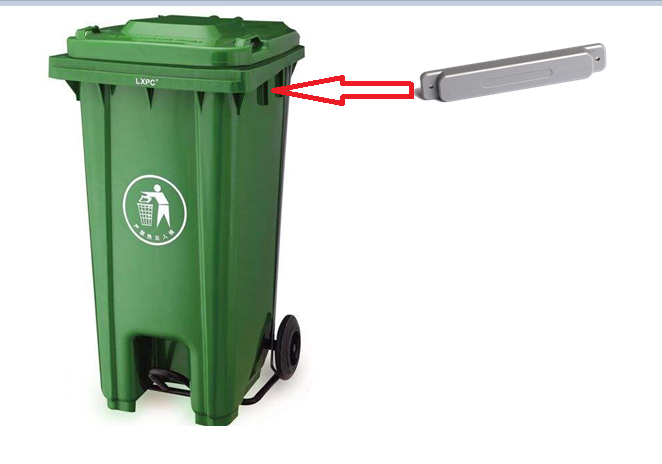

• Each trash can is given an “ID card”

•   Based on RFID technology, each trash can is unique;

•   RFID electronic tags participate in the entire life cycle of trash cans.

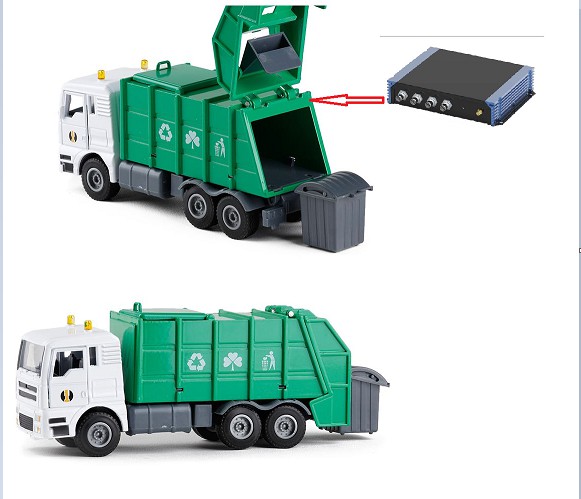

• Garbage transportation sanitation truck automatic collection


• Sanitation trucks automatically collect and upload garbage bin circulation status in real time

•   Realize job debugging in the cloud and issue debugging results to remind workers to correct errors in real time

•   Information collection and transmission adopt the most advanced blockchain technology to ensure data uniqueness and non-tamperability.


• Key indicators


• Supports direct communication with the software platform via HTTP without the need for additional data relay equipment.

• Support ISO18000-6C, ISO18000-6D, GB29768 and EPC C1Gen2V2.0 (multi-protocol to cope with complex environments);

• It has high stability and supports temperature protection. When the temperature is too high (greater than 85 degrees Celsius), it will stop working. After the temperature recovers, the equipment will automatically resume work.

• Supports anti-cross-reading algorithm to effectively filter interfering tags;

• Supports FastID, Tagfocus, BlockWrite, BlockErase, BlockPermalock and EAS operation functions to achieve stable, safe and efficient transmission;

• Multi-antenna fast switching algorithm, dynamic allocation of working time for each antenna. Achieve fast and no-miss reading.

• 7. With lightning protection function to prevent lightning damage.


• Cloud platform based on IoT and blockchain technology


•  Trash can information entry, trash can scrapping (including natural scrapping, abnormal scrapping, and loss);

•   Job task generation;

•   Distributed data terminal reporting abnormal data filtering and alarming;

•    https business message data encryption and decryption;

•    Vehicle operation abnormality algorithm judgment;

•    Smart reminder;

•    Intelligent alarm.
