UHF RFID intelligent warehouse management solution

1、Traditional logistics and warehousing face challenges

• Labor costs are high and human resources are wasted. Manually record the data in handwriting and enter it into the computer to collect, count and organize the data.

• Storage data is imprecise. The accumulation of documents can easily lead to untimely data or data errors due to carelessness of staff.

• The work efficiency is low and easy to forge and modify. The data entry speed is slow and the accuracy is low. Due to human factors, the stored information is easily modified manually.

• In the process of traditional commodity logistics management, barcodes are the main means of product identification. Barcodes are read-only, need to be aligned with the target, can only be read one at a time, and are easily damaged.


2、RFID empowered warehouse management solutions

• Utilize RFID technology's long-distance and fast batch reading and writing, unique identification, and anti-counterfeiting and anti-theft features to realize batch and fast sending and receiving operations of goods.

• Efficiently record the attribute changes of a single piece of goods in the logistics and commodity circulation links, so as to achieve the purpose of efficient operation and instant traceability.

• Empower customers to optimize warehousing and logistics operations processes, implement regulatory policies, and promote accurate and efficient warehouse management.

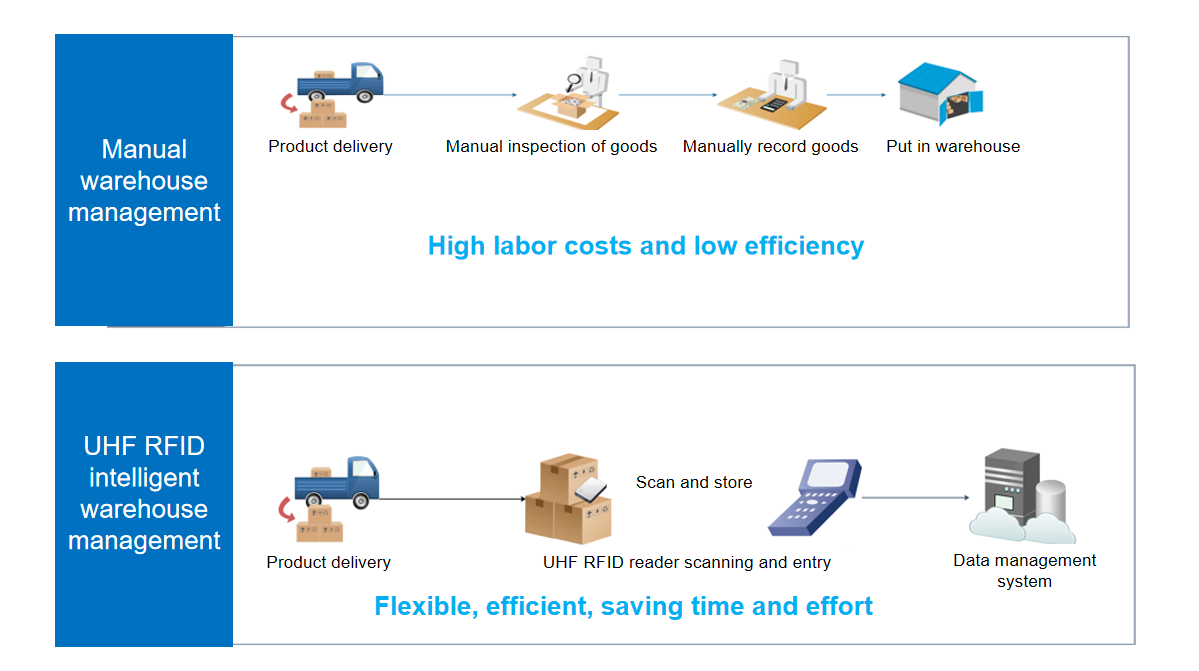

3、Comparison of RFID entrance and exit library management processes

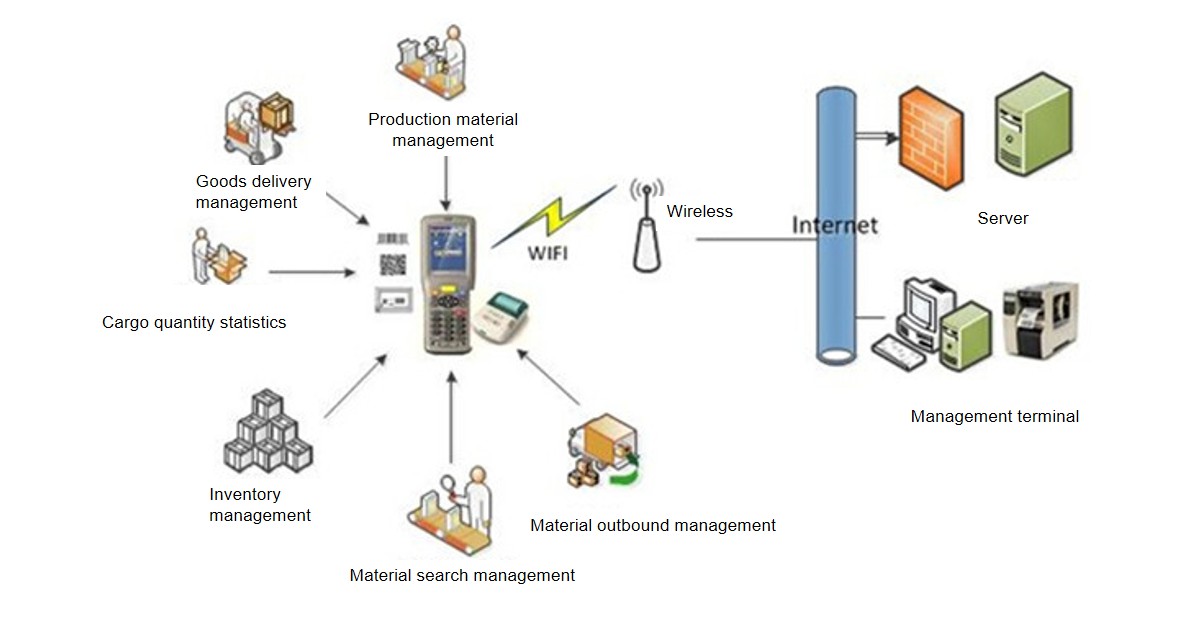

4、RFID system block diagram

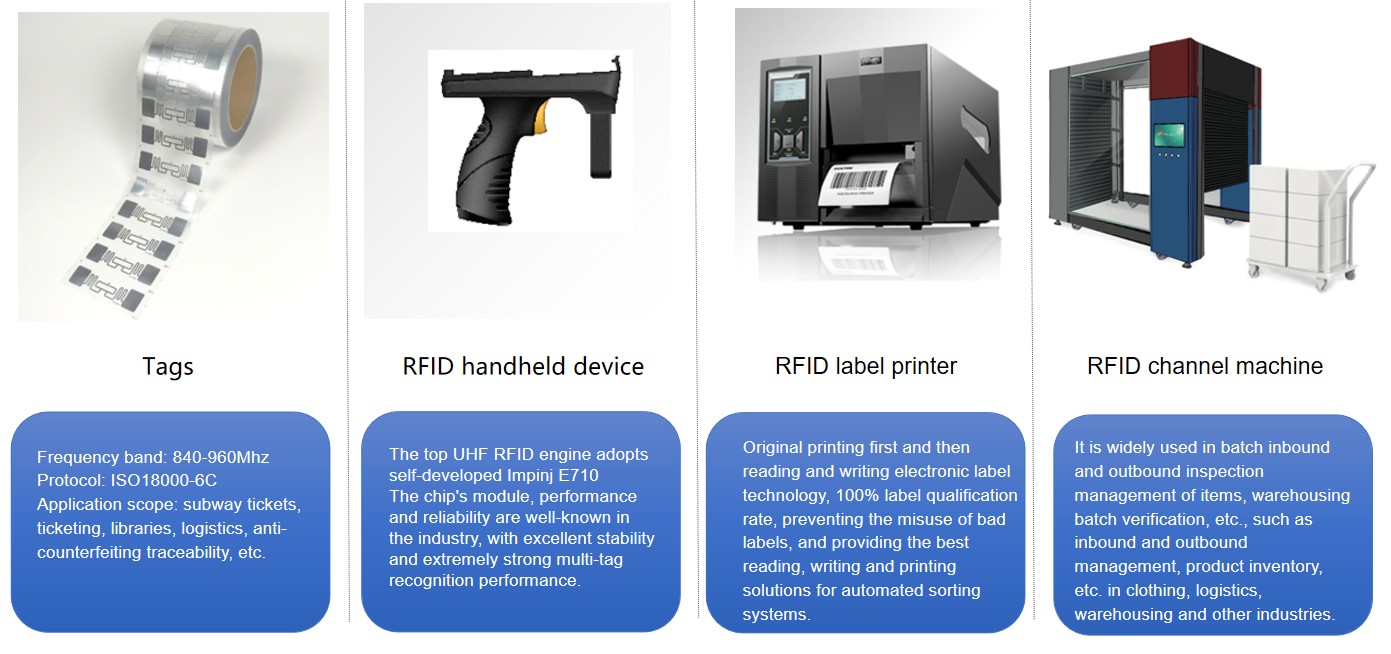

5、UHF RFID series products

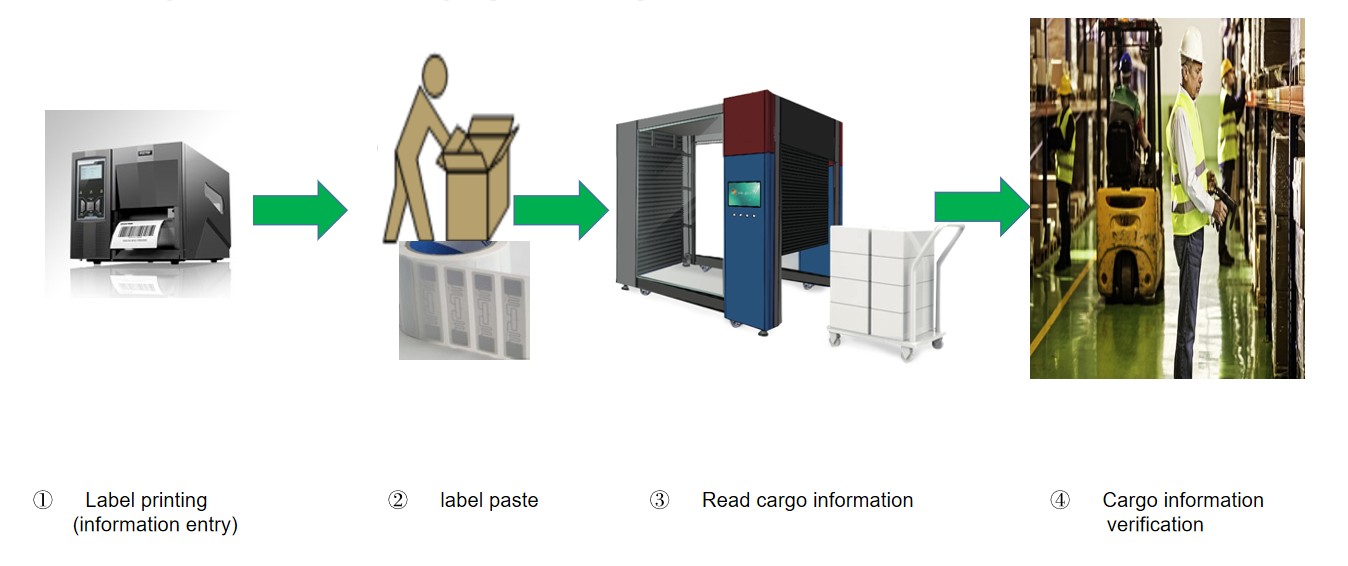

6、Intelligent warehousing operation process

7、RFID system design ideas

• Label pasting: Before the items are put into storage, an electronic label is attached or sewn to each item to complete the labeling process. The unique ID number that identifies the item is stored in the label;

• Goods warehousing: When items are put into the warehouse, they are classified according to categories and models. The workers use the RFID handheld inventory terminal to batch scan and identify the items by model. After scanning, they are put into the warehouse to complete the warehousing process. The scanned data is uploaded to server;

• Goods out of warehouse:When items are shipped out of the warehouse, the operator takes out the specified model and quantity of goods from the warehouse based on the shipping order or a new shipping order. The items are batch scanned and identified through the channel machine. After verification, the outbound process is completed. Scan Data is uploaded to the server in real time;

• Item Returns:When an item is returned, the operator scans and identifies the returned item, completes the return process, and uploads the scanned data to the server in real time;

• Inquire about anti-crossing goods:When it is necessary to check whether a product has been shipped, it comes from where the product has been shipped. Just read the electronic label number of the product, and the product name, model, specification, agent number and other information of the product will pop up. It is clear at a glance whether the product is shipped from another country and where it came from.

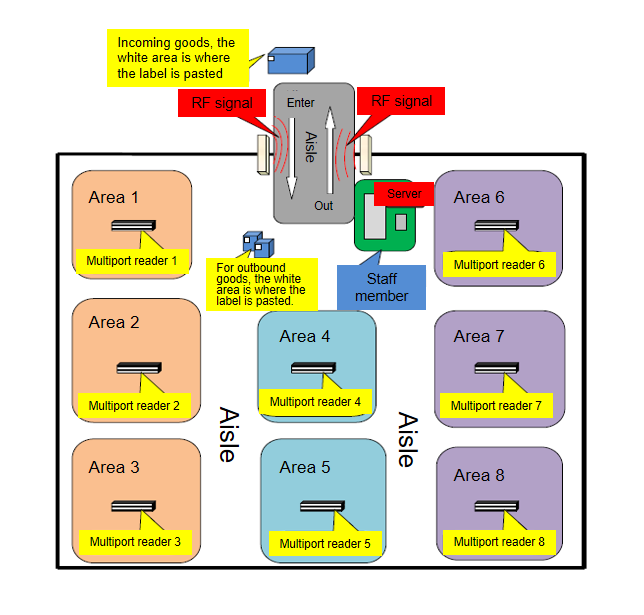

Option 1: Fixed reader/writer solution

Use fixed readers and writers to do daily inventory of goods in the warehouse to solve daily inventory needs

• For goods that need to be shipped out, arrange the storage location in the system first;

• All tagged items are placed in the waiting area and transported out of the warehouse from the aisle machine;

• When passing through the access control channel, the RFID reader will automatically identify the tag information.


• Accurately store the goods in the corresponding management location according to the label information and system prompts.


Option 2: Handheld phone solution

Use handheld computers to do quarterly inventory of goods in the warehouse to solve daily inventory needs

• Long-distance ultra-high frequency special reading terminal, very comfortable to hold.

• The terminal is equipped with a high-performance UHF reading and writing module, combined with a unique antenna design, and the reading distance can reach up to 7-8M or more.

• Tag recognition rate ≥200 sheets/5 seconds.

• Industrial IP65 protection grade, waterproof and dustproof.

• 1.2 meters drop resistance, stable and reliable quality.

• Double your work efficiency.

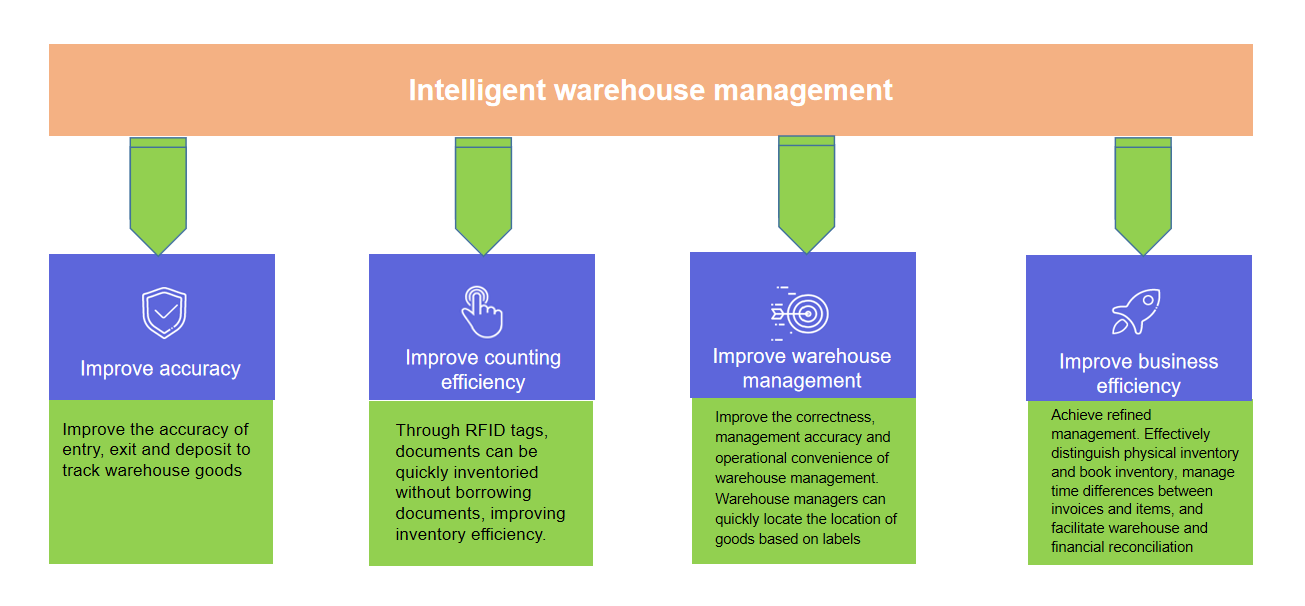

8、Smart warehousing benefits
