Asset Management UHF RFID Hardware Solution

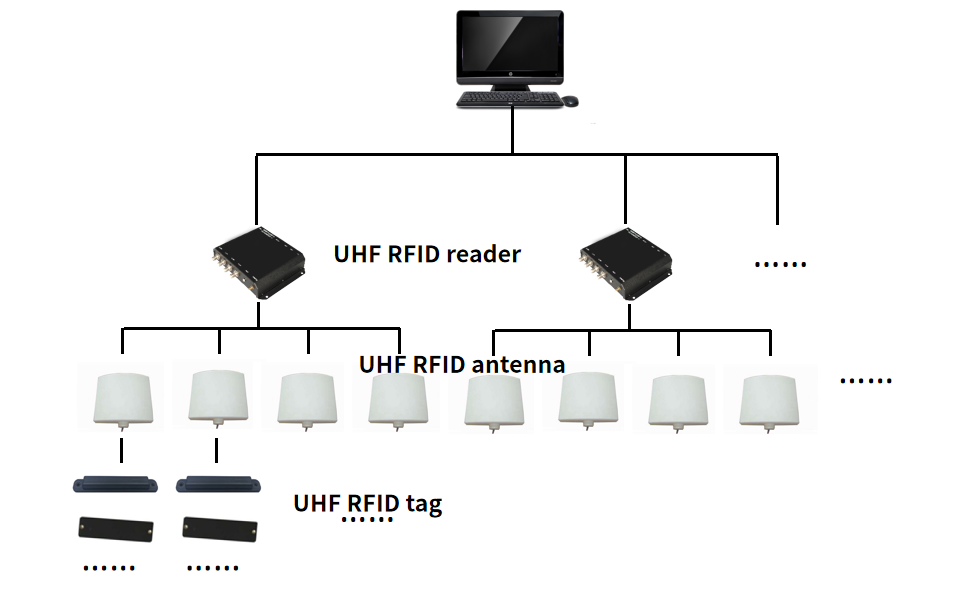

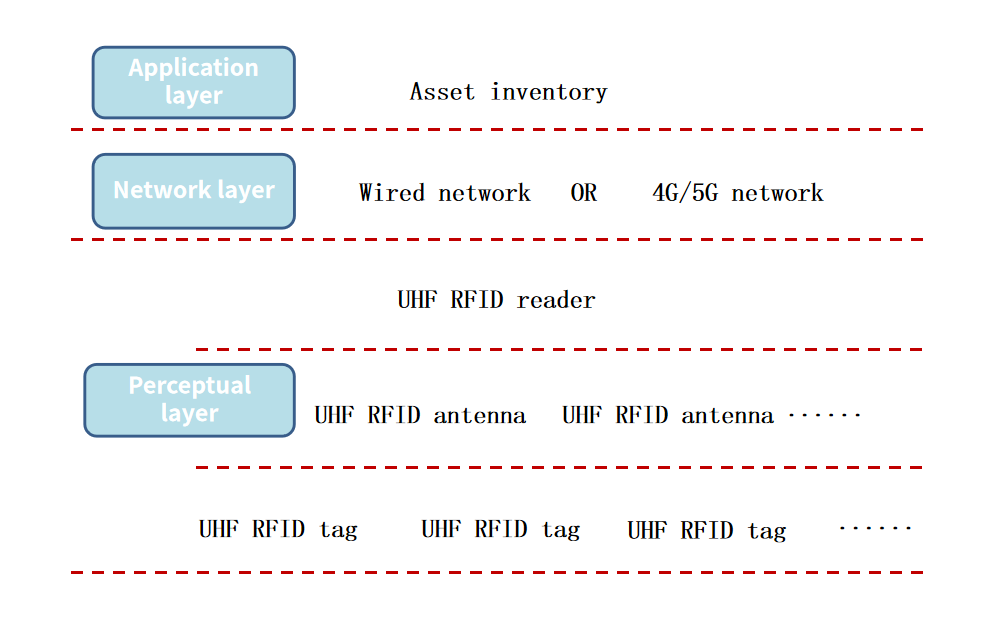

1、System structure

2、Hardware architecture

3、Business Process

• UHF RFID reader and cloud perform data transmission through HTTP protocol;

• The UHF RFID reader collects electronic tag data through the antenna;

• The cloud initiates asset inventory at regular intervals;

• The UHF RFID reader will automatically take inventory after receiving the instruction and automatically report the inventory results;

• The cloud receives the inventory results, analyzes them intelligently, and generates reports;

• If any abnormalities are found, the abnormal points can be remotely controlled and a second inventory can be confirmed.


4、Advantage

• Dynamically adjust the port impedance, and the performance consistency of RFID will not be affected when the external environment is greatly different.

• It has high stability and supports temperature protection. When the temperature is too high (greater than 85 degrees Celsius), it will stop working. After the temperature recovers, the equipment will automatically resume work.

• Supports anti-cross-reading algorithm to effectively filter interfering tags.

• Multi-antenna fast switching algorithm, each antenna's working time is dynamically allocated, achieving fast and no missed reading.

• Supports FastID, Tagfocus, BlockWrite, BlockErase, BlockPermalock and EAS operation functions to achieve stable, safe and efficient transmission.

• The software and hardware anti-crash mechanism ensures that the equipment operates trouble-free 24/7.

• Supports ISO18000-6C, GB29768 and EPC C1Gen2V2.0 (multi-protocol to cope with complex environments).

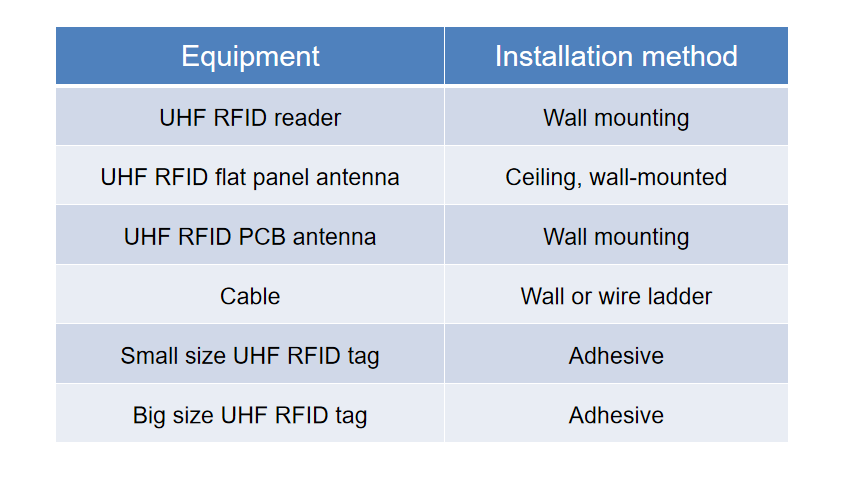

5、Installation and deployment--indoor computer room

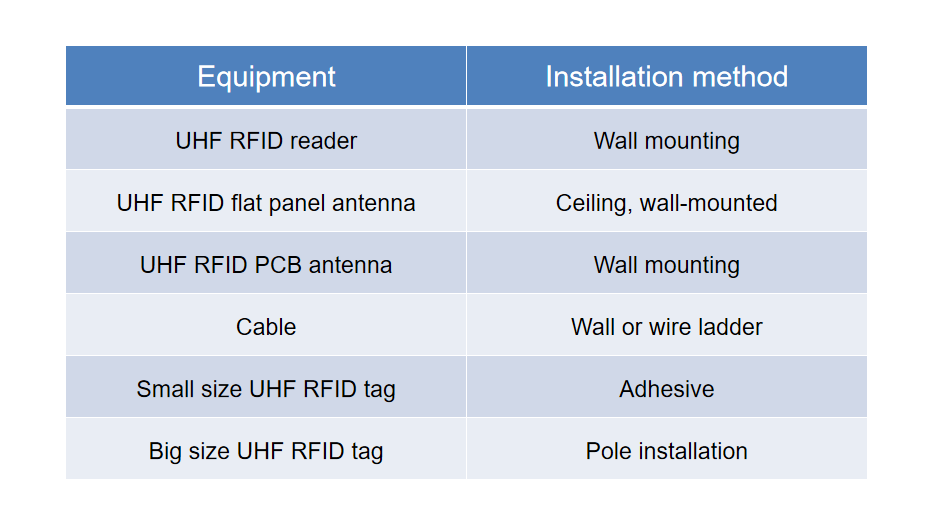

6、Installation and deployment--outdoor computer room

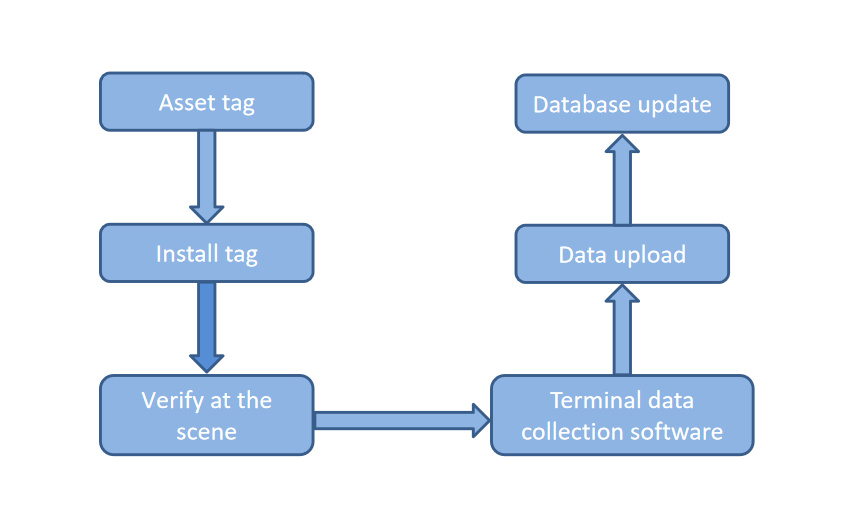

7、Asset tag initialization

8、Automatic testing after installation and deployment

     After the installation and deployment are completed, it is necessary to confirm whether the construction personnel have completed the installation and deployment work with quality and quantity. We will customize and develop an automatic inspection software based on the actual conditions on site. The software automatically tests whether the reader status, feeder status, antenna status and tag installation position are reasonable. If corresponding abnormalities are found, the on-site construction personnel will be prompted to solve the fault. This software can greatly shorten troubleshooting time and improve construction progress.

9、Hardware equipment

• UHF RFID reader EZ710R-4

• UHF RFID antenna  EZA-9C24045

• Cable RLFC-195

• UHF RFID tag  EZT-M952503

• UHF RFID tag EZT-M501003

• UHF RFID tag EZT-M1352212


10、Test result

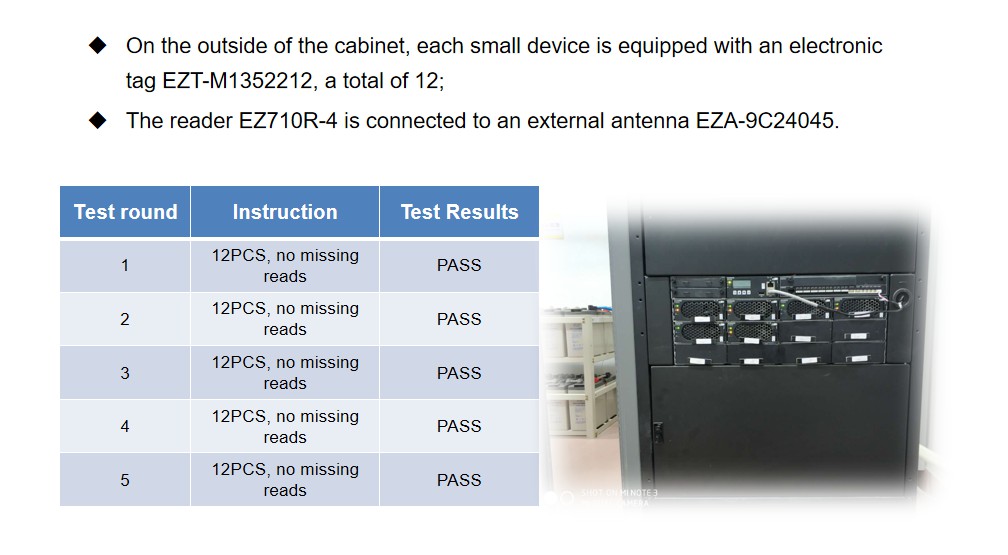

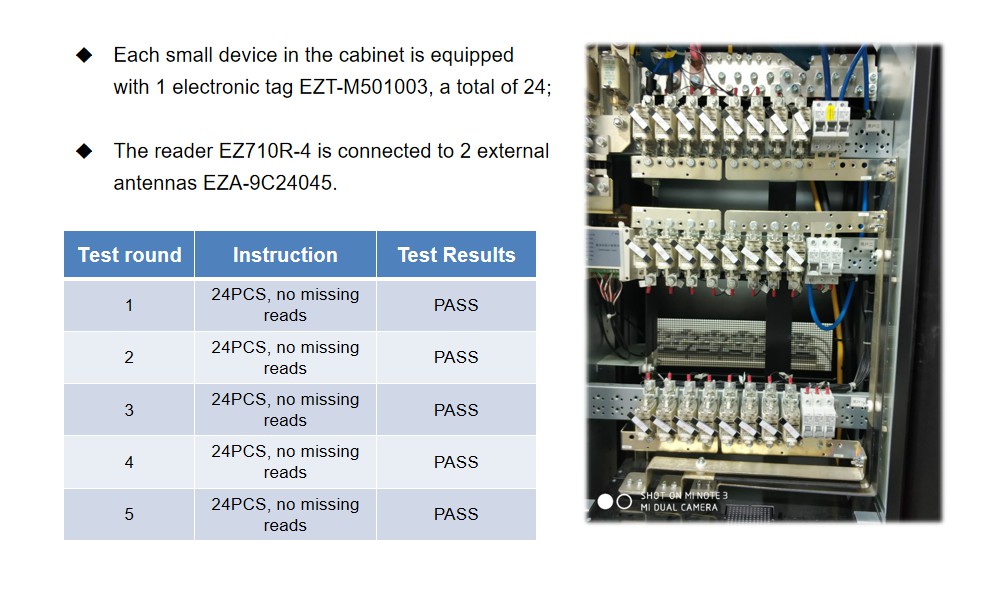

Field test:cabinet 1

Field test:cabinet 1

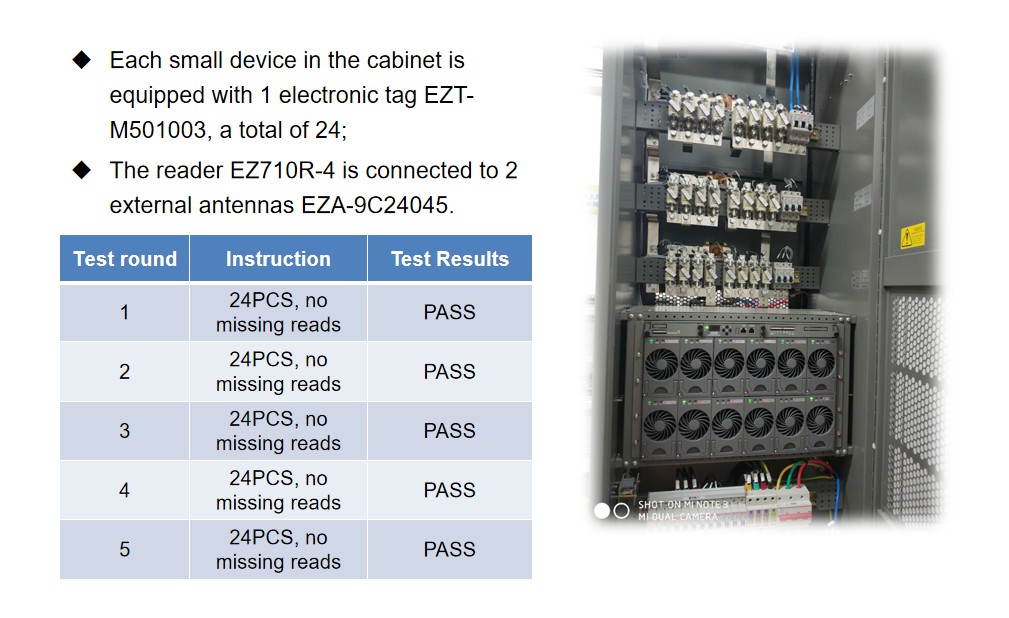

Field test:cabinet 2

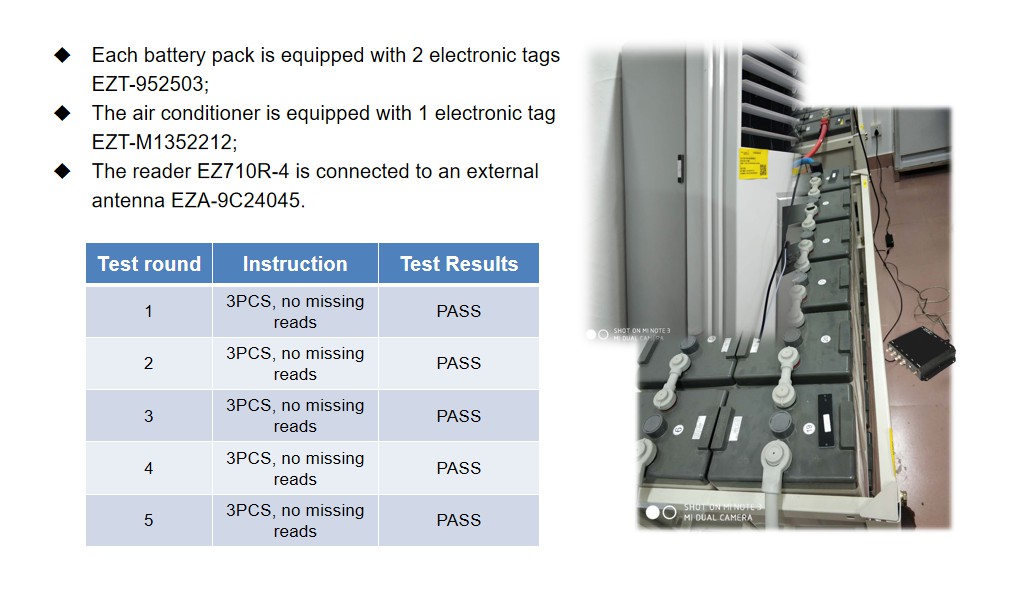

Field Test Battery Pack 1 & Vertical Air Conditioner

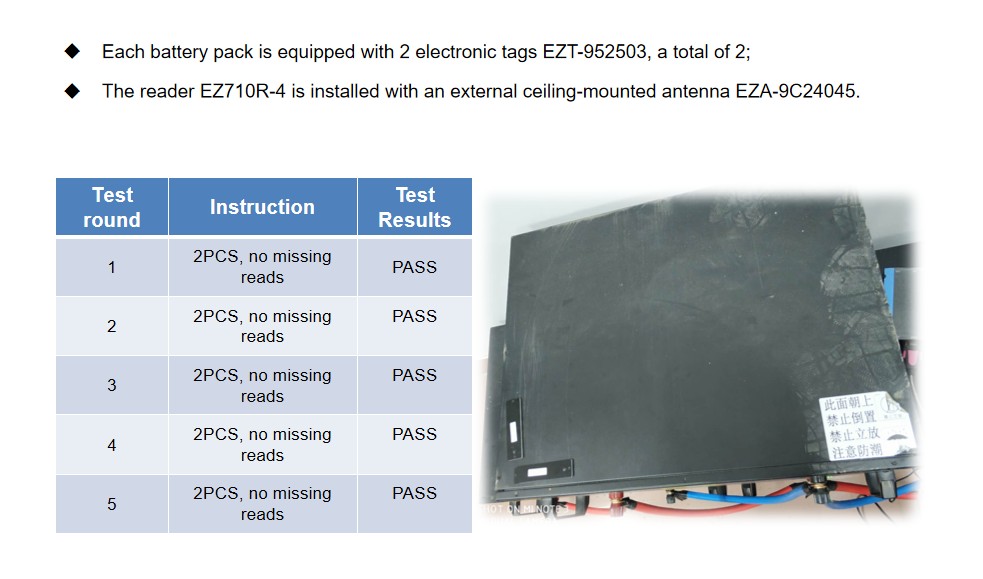

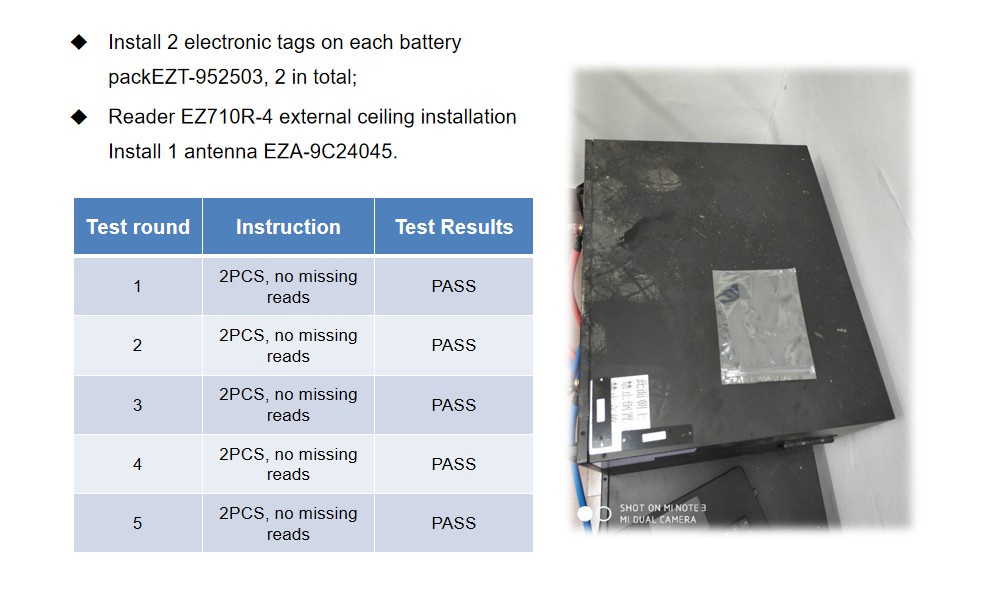

Field test battery pack 2

Field test battery pack 3
